DRCG WW RTTY CONTEST



How To

Download StatsDRCG.zip from www.digitalrus.ru

1.     Unzip archive in ../Plugins Mixw (files StatsDRCG.dll, drcg.mc and Points_DRCG.txt)

2.     For version MixW 2.19 folder Plugins settles in root folders MixW.

3.     For version 2.20 and above you at installation will be by default:

-          for Windows 7 and Windows Vista

C: \Users \ <User> \AppData \Roaming \MixW
- for Windows XP

C: \Documents and Setting \ <User> \Application Data \MixW

4.     Run Mixw

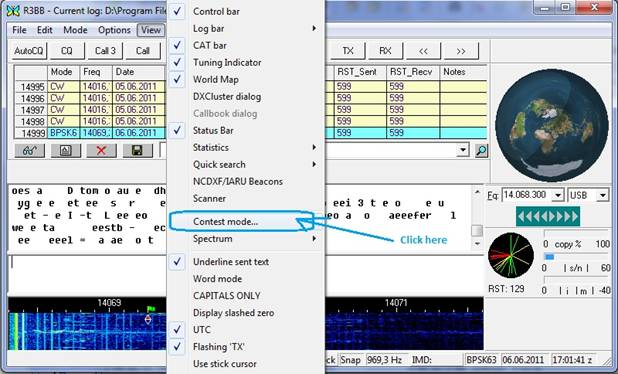

5.     Menu View - Contest mode (Figure 1)






Figure 1.

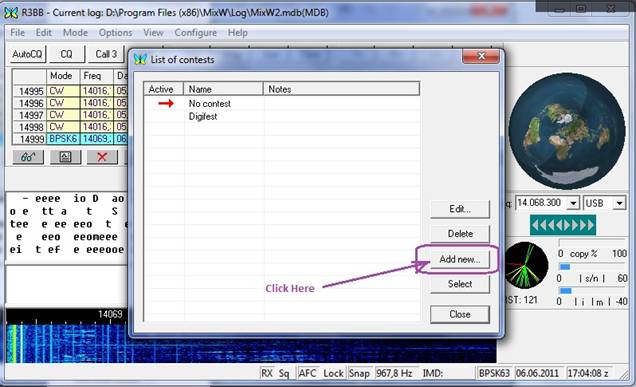

6.     Click Add new (Figure 2)






Figure 2.

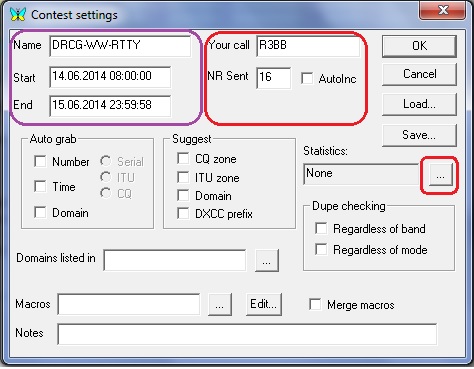

7.     Fill fields Name and etc as shown in figure. In fileds Your call insert your CALL . Remove a tick in the field Autoinc.

In fields NR Sent insert your CQ-Zone. Press the button with three points (Figure 3)




Figure 3.

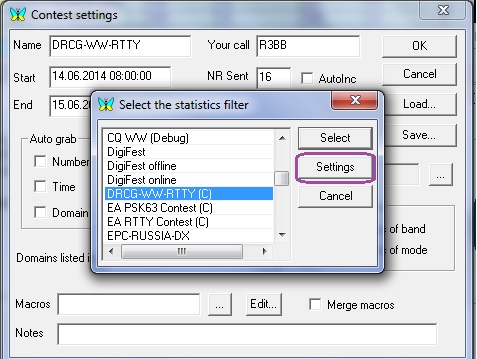

8.     Select DRCG-WW-RTTY (C) and press button Setting (Figure 4.)










Figure 4.

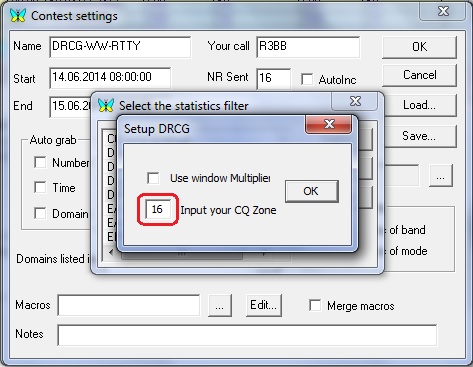

9.       Input in field Input your CQ zone your CQ zjne and click OK.(Figure 5)




Figure 5



10.   Click button Select (Figure 4)

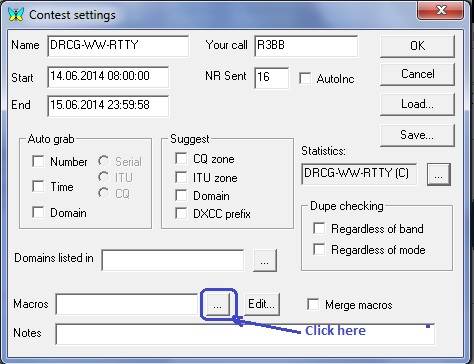

11.   Click button for select macro (Figure 6.)






Figure 6.

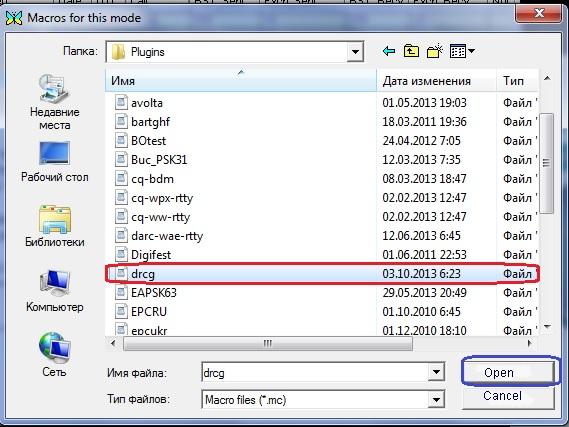

12.   Select drcg.mc and click Select (Figure 7)




Figure 7.

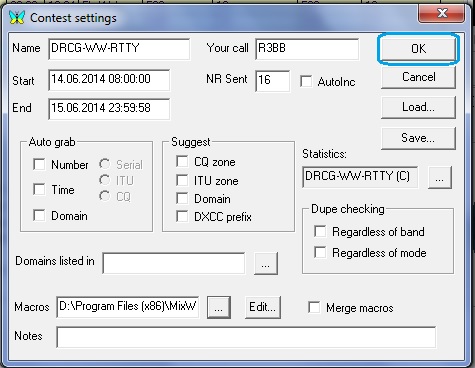

13.   Click button OK (Figure 8)




Figure 8.

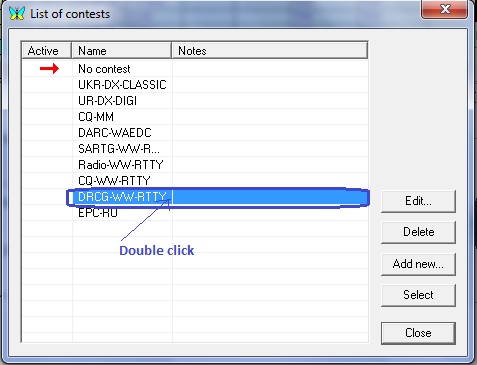

14.   Double click on DRCG-WW-RTTY (Figure 9)






Figure 9.

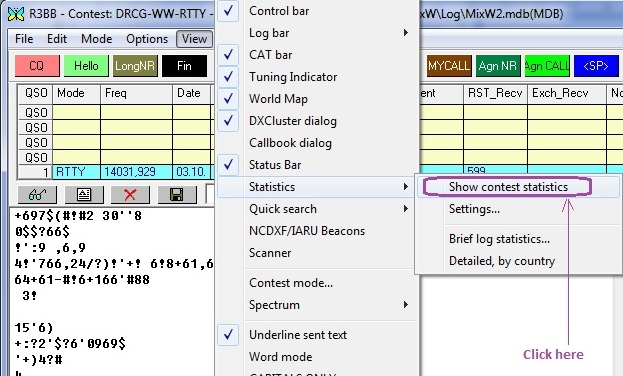

11.  Select View->Statistic->Show contest statistic (Figure 10)








Figure 10.

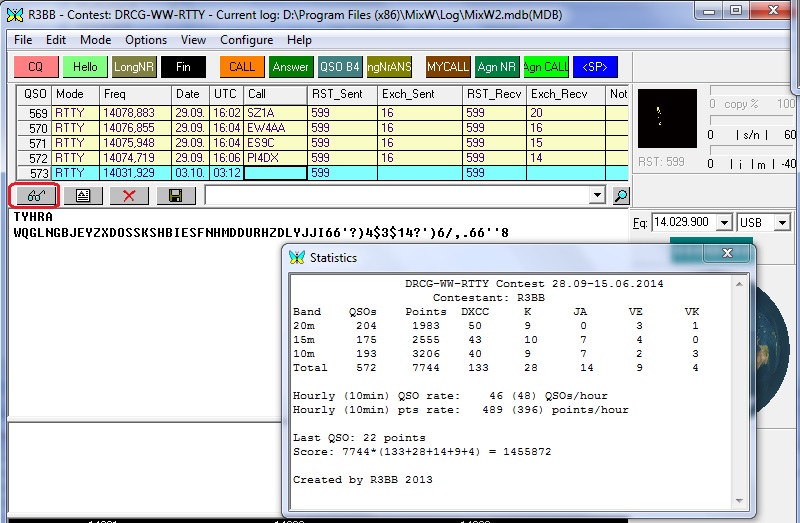

12.   Enjoy DRCG-WW-RTTY Contest (Figure 11)






Figure 11.



13.   Create Cabrillo log. Click button glasses (Figure 11)

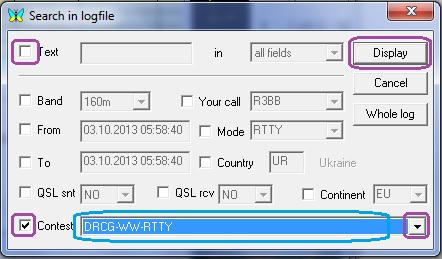

14.   Disable field Text , enable field Contest , select DRCG-WW-RTTY and click button Display(Figure 11.)








Figure 12.

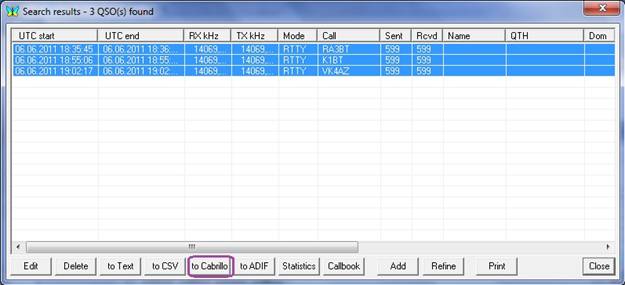

15.   Select QSO for DRCG-WW-RTTY and click Cabrillo (Figure 13)






Figure 13.

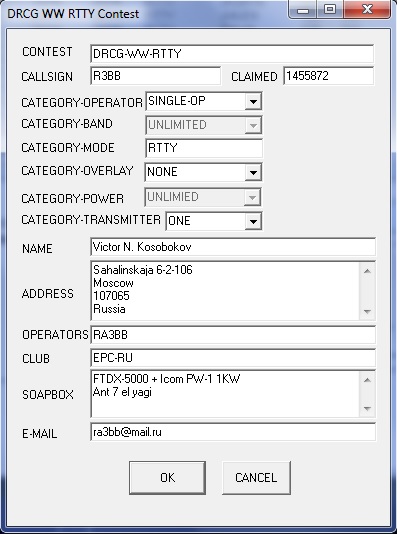

16.   Fill the form (Figure 14.) and press OK






Figure 14.



17.  After pressing OK will return to the previous window, press Close and will return in MixW

18.  The file <yours call>.cbr for version 2.19 will be in root folder MixW.

19.  For version 2.20 or above and you at installation will be by default



for Windows 7 and Windows Vista

-          C: \Users \ <User> \AppData \Roaming \MixW


for Windows XP

-          C: \Documents and Setting \ <User> \Application Data \MixW

20.  That will return to normal operating mode MixW - choose View-> Contest Mode

and double click No contest
